Buoys!

Apr 2, 2022 by Gene Klco

I made 3 buoys to put out around the ANP to let boaters know to stay back from the nest – especially when the loons are setting on the eggs.
Buoys


I chose large sewer pipes – 4” diameter 10’ long and (6) 4” caps to seal the pipes with. I cut the pipe into 3 sections. I also bought 3 large eye bolts and 3/16” washers and nuts for them.  For the anchors, I used 3 plastic coffee containers and 3 smaller containers (to weigh the buoys down). 6 medium eye bolts, washers and nuts and 12’ medium chain round out the hardware. A bag of concrete will make the coffee containers anchors.

After sealing the bottom on the pipes with the appropriate pipe cement & drilling a hole for the eye bolt & attaching it securely (add silicone glue to seal), I poured about 4” of cement into the bottom & let harden.  Then with a vent hole in top to let the air escape, I glued on the top cap. After the glue dried, I sealed the vent hole with a fat screw.

The weights were made by pouring cement in the coffee can containers and pushing the lid on with an eyebolt stuck through the lid with washers secured part way down the eyebolt to make an attachment for the weight to the chain.

The small weight is attached to the chain at a length as far down as possible, but not resting on the bottom of the lake. The coffee can is used as the anchor (tied to small weight with nylon rope).  I used a carabineer like clip to attach the small weight to the chain for adjustment of location. The small weight keeps the buoy upright.

I use black plastic lettering to label the buoys and black duck tape to make a loon figure to enhance the message.

When the buoys were done, I placed them about 100’ out in a circle around the ANP to warn boaters to stay back.

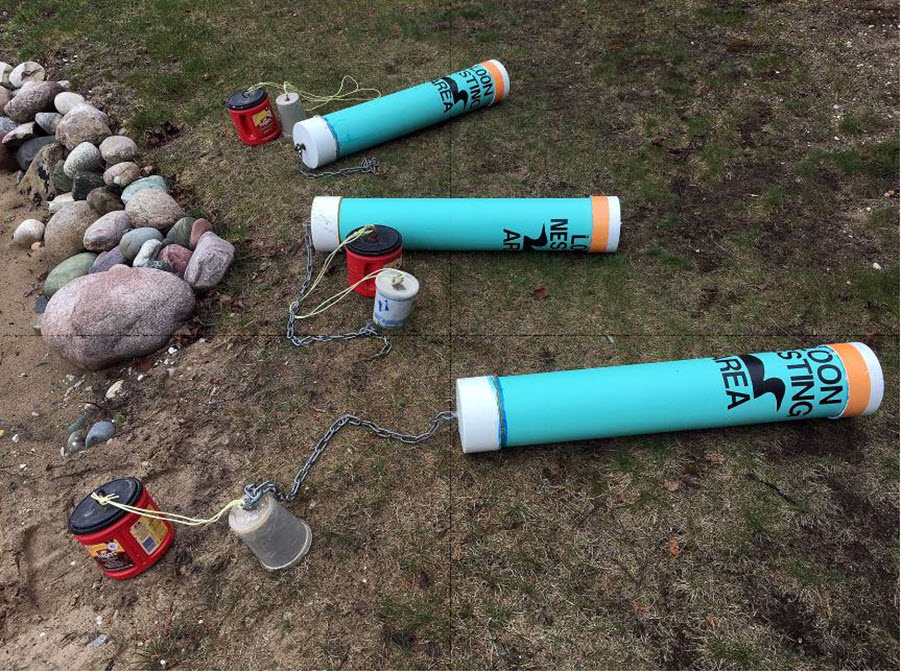

Anchors

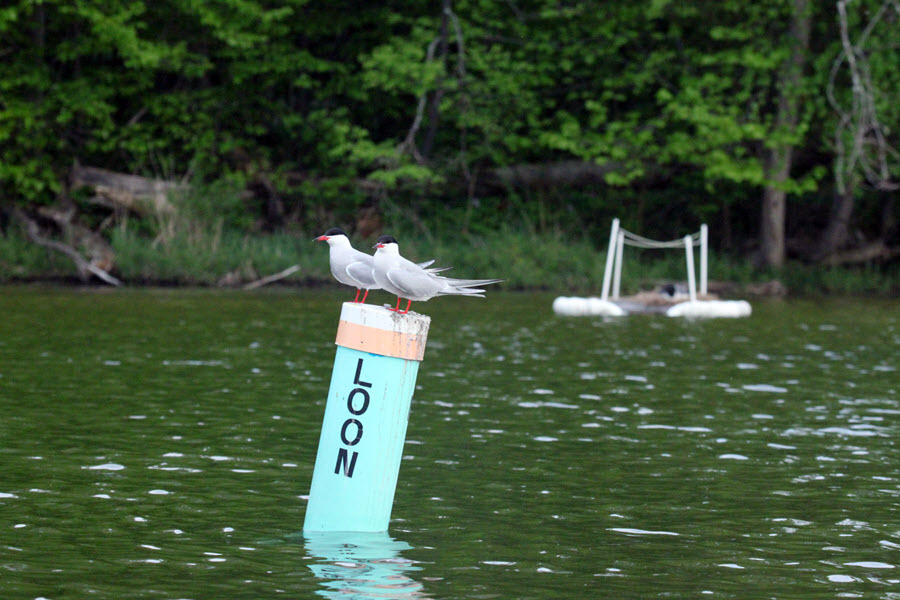

Terns on Buoy


That didn't keep the local terns from resting on the buoys though. That buoy was tilted because the water level dropped and the small anchor was setting on the bottom.

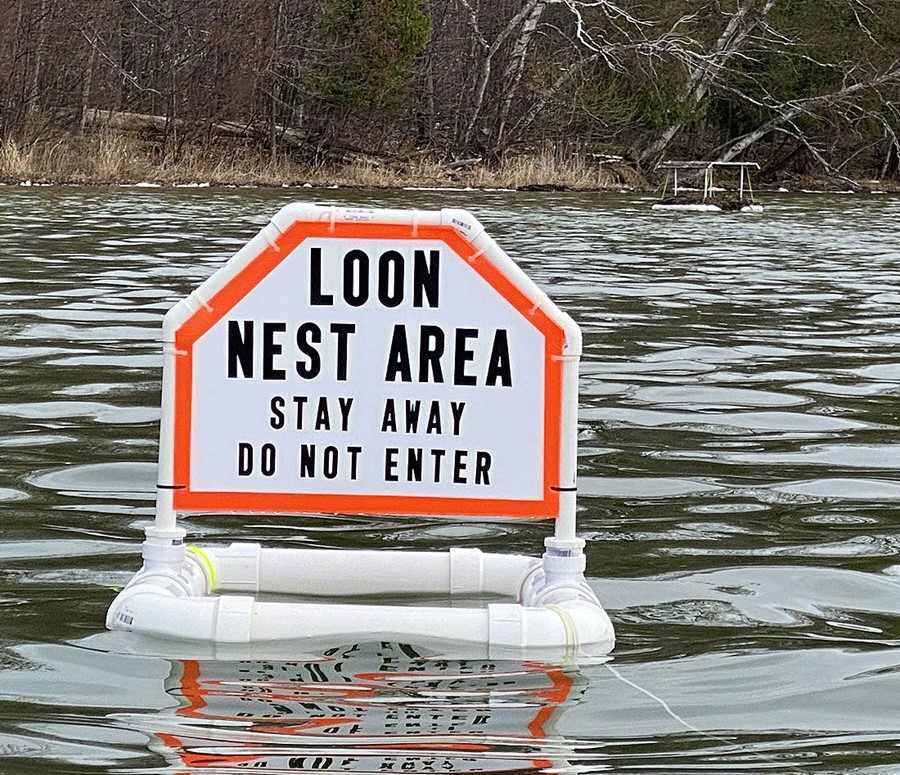

In 2021, I added a floating sign to further warn boaters to stay back. This was made with 2” plastic pipe and 1” pipes for the top part. Corrugated plastic was used for the sign with plastic letters. Two coffee can anchors (like for the buoys) and nylon line is used to hold the sign in place. The sign was zip tied on to the plastic pipe.
Sign
